LM4580 DUAL LOW NOISE OPERATIONAL AMPLIFIERS
1、General Description The LM4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier,industrial measurement tools and applicationswhere gain and phase matched channels are mandatory. The IC features internal frequency compensation, lownoise, low distortion, high gain and high bandwidth.The LM4580 can operate under dual power supply voltage up to ±18V or single power supply up to 36V.The LM4580 is available in DIP-8, SOIC-8 and TSSOP-8 packages. | 2、Features
3、Applications
|

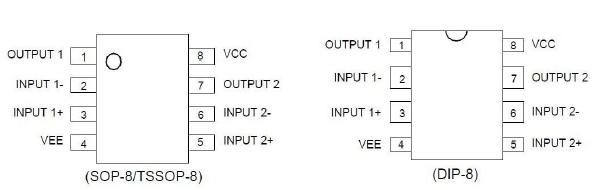

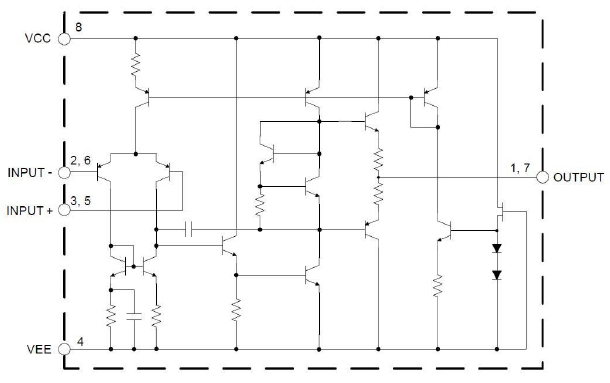

| 4、Functional Block Diagram | 5、Pin Configuration |
 |  |
化合物機型 | 購貨的現象 | 的通道數 | 神器任務額定電壓范圍 (V) | 增益值上行速率積 | 靜態變量感應電流/的通道 | 平橫交流電壓 （mV） | 均衡直流電壓溫漂 （μV/°C） | 傷害偏置感應電流 （nA） | 打包封裝 |
| LM4580 | 量產 | 2 | 4.0-36 | 15MHz | 3.5mA | 3 | 5 | 500 | SOP8/DIP8/TSSOP8 |
